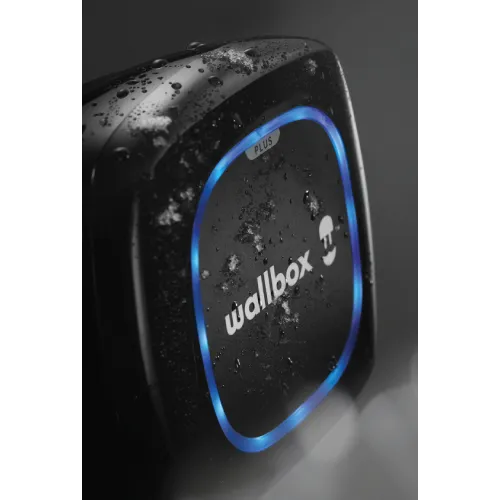

Wallbox Pulsar Plus
The smart and powerful home EV charger
Wallbox Pulsar Plus was created to give your electric vehicle a powerful smart charger in an incredibly small size. It is perfect for daily use at home. Its compact dimensions and minimalist design fits any garage and is enhanced by multiple functions found on the Wallbox App and Portal.
- Compatible with any EV: Pulsar Plus is available with type 1 and type 2 charging cables.
- Powerful: 7.4kW, for up to 8x faster charging compared to standard outlets.
- Durability: Safely install and use your charger indoors or outdoors.
- Compact: Small and lightweight design for minimal impact in your home
- 3-year warranty: Developed and manufactured in Europe, Pulsar Plus is designed to last.
Technical Specifications
General Specifications
Colour
Black
Charging Mode
Mode 3
Dimensions
166x163x82 mm
Weight
1 kg
Protection Rating
IP54 / IK08
Cable Length
5 m (7 m optional)
User Interface & Communications
Connectivity
WiFi, Bluetooth
User Interface
Wallbox App and Portal
Charger Status Information
RGB LED / Wallbox App and Portal
Energy Management Solutions (optionals)
Dynamic Load Management / Solar Charging / Static Load Management / MID Meter
Communication Platforms
Wallbox App and Portal, OCPP 1.6j
Electrical Specifications
Maximim Charging Power
7.4 kW (1Phase)
Rated Voltage AC ± 10%
230 V (7.4 kW)
Rated Current
32 A (7.4 kW – 1Phase)
Connector Type (IEC 62196-2)
Type 2 or Type 1
Connection Type (IEC 62196-2)
Type 2 Shutter
Maximise sustainability and savings with our energy management features
- Solar Charging
Use the surplus energy from a building’s solar panels to avoid high grid energy prices. Charge with 100% solar energy or a mix of solar and grid energy. - Dynamic Load Management
Charge at the highest speed possible, depending on the building’s real-time energy use, without having to upgrade the electrical infrastructure. - Static Load Management
Install multiple chargers on the same circuit to distribute the available energy and charge all connected cars at once.
