Power Supply Pits

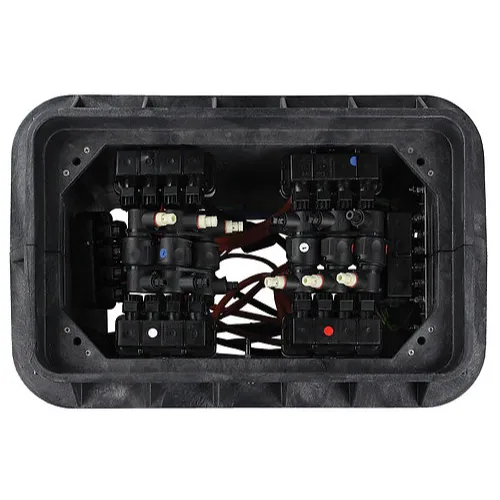

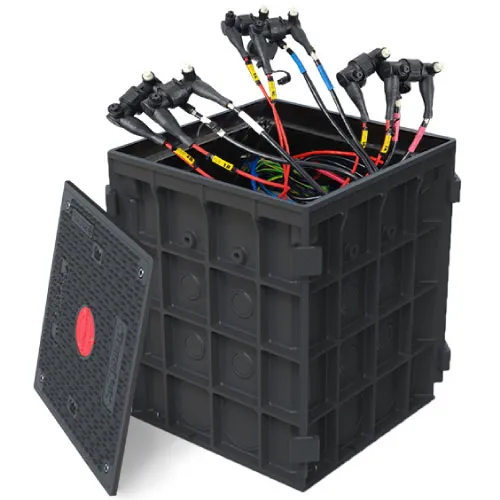

The EVC Pit kit is designed to be a complete solution to break-out from larger capacity supply cables and feed EV chargers with the current capacity required while ensuring electrical standards are met.
Our Pit kits offer the ability to loop a large supply cable (up to 120mm²) to feed multiple EVC Pits. Up to 6 chargers per pit, with a maximum of 3 pits (max 15 chargers) from a 160A three-phase feeder, or more chargers with load sharing (see Wallbox load sharing capabilities).
Designed for permanent underground termination in walkways, driveways or carparks, allowing for a clean and tidy architectural installation.
Make An EnquirySPECIFICATIONS
- Maximum supply current 160A per phase (3P+N).
- Recommended maximum cable sizes:
- Main Supply IN (up to 120mm2)
- Loop OUT (up to 120mm2)
- 6qty 10mm2 Supply OUT (fused at 32A)*
- Supply up to 6 x EV Chargers with 32A single-phase EV chargers per EVC-PIT-KIT.
* Each EV charger requires individual isolation; overload protection and Type-B RCD as per AS/NZS3000-2018 and Worksafe guidelines on EV Charging installations.
